Products / Sky LED

Sky LED

A sense of daylight.
Even without windows.

Sky LED is a system of illuminated image panels for ceilings. Sky imagery creates a virtual sky ceiling that brings a sense of daylight to clinics, waiting areas and meeting rooms.
Swedish design & manufacture
5-year warranty

A wide range of applications.

See Sky LED in healthcare spaces, waiting areas and offices.
Start with your space

Make the room feel more open.

More depth in the ceiling

With a sky image, for example, the illuminated surface can feel like an opening overhead. Choose the look to suit what you want to bring to the room.

For your existing space

The modular frame fits suspended ceilings. Sky LED can also be suspended on cables or mounted against a solid ceiling to suit the room.

A direct connection to the manufacturer

Sky LED is made in Sweden and comes with a 5-year warranty. You receive personal help choosing your product and a dedicated contact before ordering.
Biophilic design

A connection to nature.
Even indoors.

Where there is no outside view, nature imagery can offer a visual connection to the world beyond. Sky LED makes the image an illuminated part of the ceiling. Choose sky and greenery, or another scene that suits your setting.
A closer look

Choose a configuration
to suit your room.

Start with the ceiling, the image area and how you want to control the light. Then choose an image that suits the space.

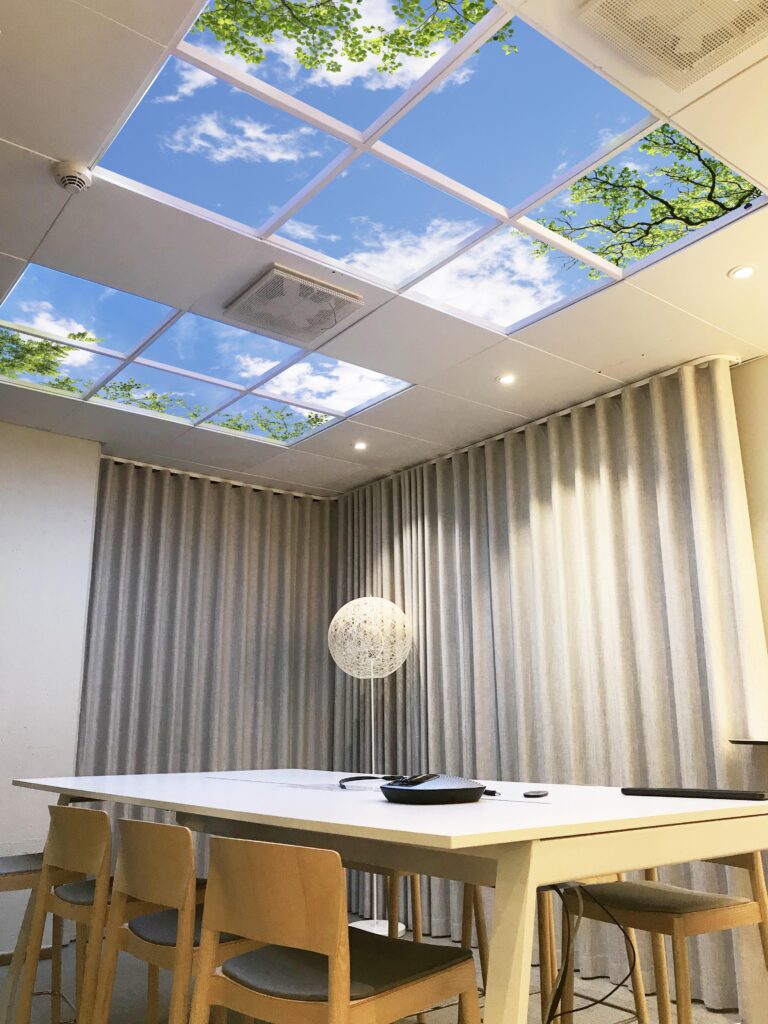

Individual panels or multiple panels in a larger installation.

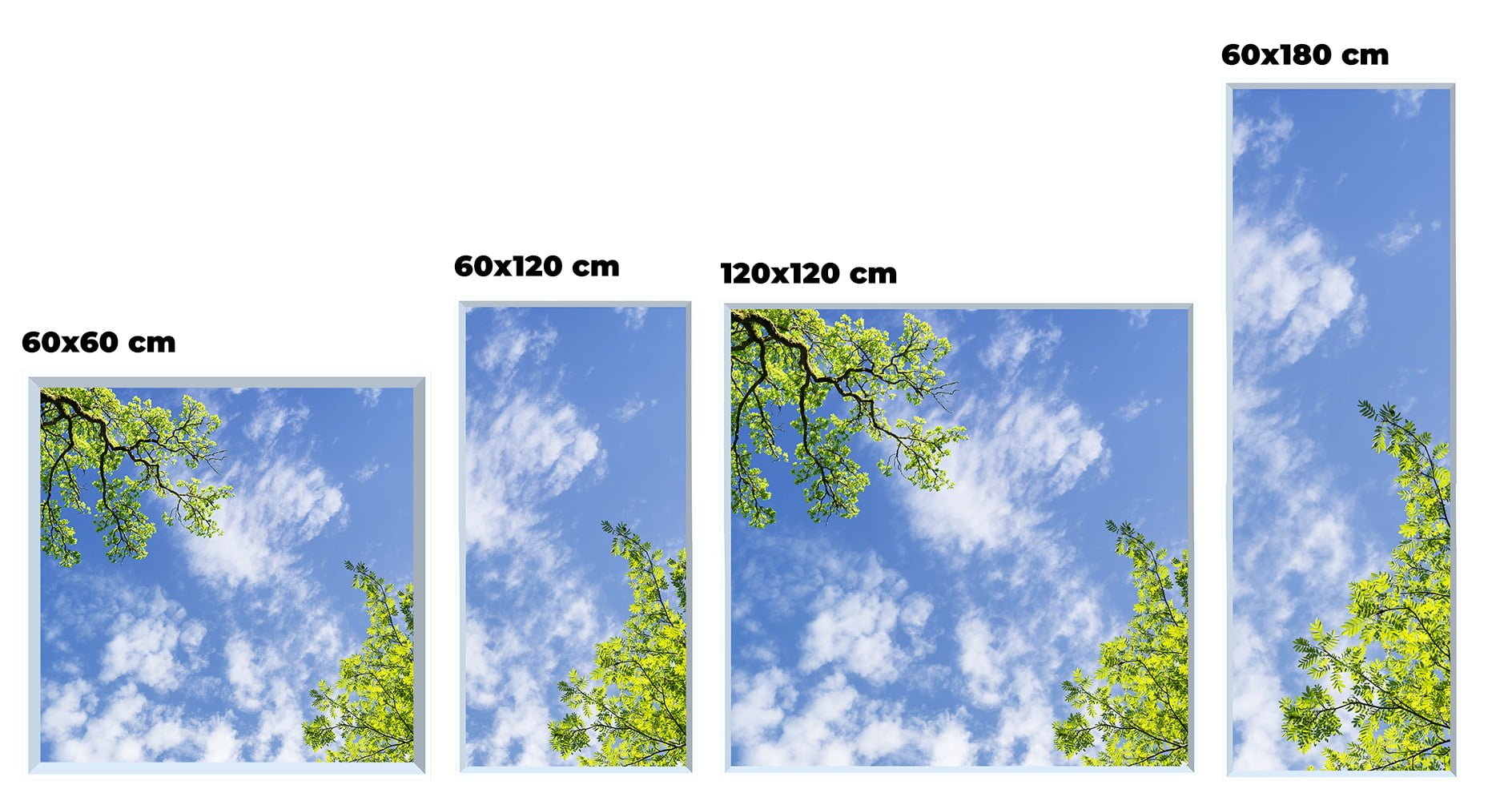

A size to suit your room

Choose a standard size or discuss a custom format. Multiple panels can be combined into a larger illuminated surface.

Individual panels or multiple panels in a larger installation.

The white frame gives the panel a clean appearance. View the product image in detail and discuss the configuration with Johan before installation.

A close-up of the panel's white frame and finish.

Sky LED can be recessed into a suspended ceiling, suspended on cables or mounted against a solid ceiling. Choose mounting and controls to suit the room.

Example: Sky LED mounted against a solid ceiling.

The image catalogue contains a range of subjects. You can also use your own image, subject to a quality and format check.

Catalogue example IM_207: sky and greenery.
Image catalogue for Sky LED

Choose an image for your room.

Explore the images and choose the atmosphere you want to create.
Summer sky with a kite

IM_201_1_120x120

120 × 120 cm
Foliage against blue sky

IM_207_120x120

120 × 120 cm
Clouds and green branches

IM_208_120x120

120 × 120 cm
Open sky above the trees

IM_230_120x120

120 × 120 cm
Green treetops

IM_232_120x120

120 × 120 cm
Soft clouds and foliage

IM_234_120x120

120 × 120 cm
IM_235_120x120 Lumlyx Sky LED

IM_235_120x120

120 × 120 cm
IM_236_120x120 Lumlyx Sky LED

IM_236_120x120

120 × 120 cm
IM_262_120x120 Lumlyx Sky LED

IM_262_120x120

120 × 120 cm
IM_263_120x120 Lumlyx Sky LED

IM_263_120x120

120 × 120 cm
IM_270_120x120 Lumlyx Sky LED

IM_270_120x120

120 × 120 cm
IM_273_120x120 Lumlyx Sky LED

IM_273_120x120

120 × 120 cm
IM_274_120x120 Lumlyx Sky LED

IM_274_120x120

120 × 120 cm
IM_278_120x120 Lumlyx Sky LED

IM_278_120x120

120 × 120 cm
IM_279_120x120 Lumlyx Sky LED

IM_279_120x120

120 × 120 cm
IM_281_120x120 Lumlyx Sky LED

IM_281_120x120

120 × 120 cm
IM_282_120x120 Lumlyx Sky LED

IM_282_120x120

120 × 120 cm
IM_283_120x120 Lumlyx Sky LED

IM_283_120x120

120 × 120 cm
IM_284_120x120 Lumlyx Sky LED

IM_284_120x120

120 × 120 cm
IM_285_120x120 Lumlyx Sky LED

IM_285_120x120

120 × 120 cm
IM_286_120x120 Lumlyx Sky LED

IM_286_120x120

120 × 120 cm
IM_287_120x120 Lumlyx Sky LED

IM_287_120x120

120 × 120 cm
IM_288_120x120 Lumlyx Sky LED

IM_288_120x120

120 × 120 cm
IM_289_120x120 Lumlyx Sky LED

IM_289_120x120

120 × 120 cm
Making your choice

Specifications for Sky LED.

Compare dimensions, power and configurations. Find the information you need to choose your product and plan the installation.
Product sizes, overall dimensions, weight, power and luminous flux from the Lumlyx datasheet.
FormatOverall dimensions (W × L × D)WeightPowerLuminous flux
60 × 60 cm592 × 592 × 44 mm3,9 kg18 W1 200 lm
60 × 120 cm592 × 1 192 × 44 mm7,8 kg36 W2 400 lm
60 × 180 cm592 × 1 792 × 44 mm13,3 kg36 W3 600 lm
120 × 120 cm1 192 × 1 192 × 44 mm18,5 kg72 W4 800 lm
Custom sizeMax 1 000 × 2 000 × 44 mmDepends on configuration
Colour temperature
6 000 K
Colour rendering (CRI)
> 80
Glare rating (UGR)
< 19
Colour consistency (MacAdam)
3
Lifetime
L80, 100,000 hours
Warranty
5 years
Voltage
24 V DC / 220–230 V
Frequency
50/60 Hz
IP rating
IP40
Impact resistance
IK02
Glow-wire test
650 °C

Mounting to suit your ceiling

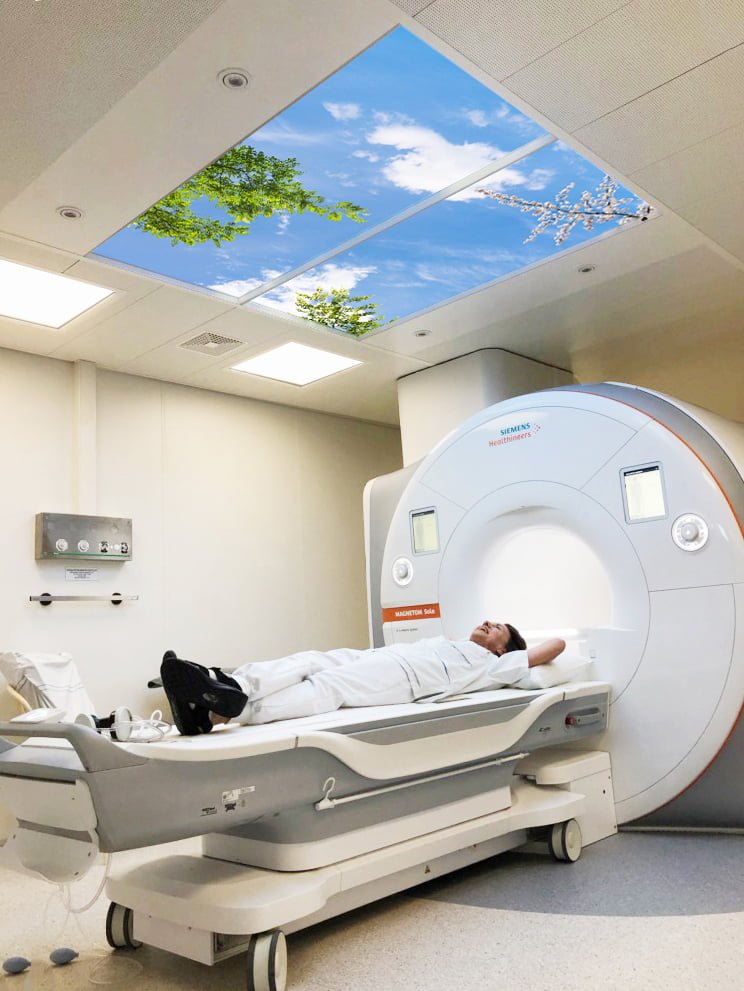

For recessed installation in suspended ceilings, cable suspension or mounting against a solid ceiling. MRI-compatible configurations are planned for the specific installation. See the relevant installation guide.

Control options

Choose simple on/off switching, dimming or wireless control. Confirm the configuration that suits your installation.
On/off
Meanwell
DALI / Switch DIM
Tridonic
Wireless
Plejd Bluetooth

Questions about Sky LED.

A few answers before your next step.

Yes. With a sky image, Sky LED can feel like a virtual skylight even in a windowless room. The panels complement the room’s lighting; they do not provide actual daylight. General and task lighting requirements need to be assessed separately.

Start with the ceiling and where people sit or lie in the room. Compare panel dimensions in the specifications and note your chosen image reference. We help you combine the image, size and mounting.

Looking for a deeper frame? Explore Deep Sky with its deep frame.

No. The catalogue also includes underwater, space and northern lights imagery. The image is one of the choices within the solution, alongside size, mounting and controls.

Panels, drivers, controls and mounting are selected for the installation. The scope of supply and responsibility for installation are agreed before ordering. Installation guides are available under specifications.

Yes, you can use your own image. We first need to review its quality, format and suitability for the proposed installation.

Send an enquiry with what you know about the room. If you have already chosen the size, quantity and image reference, include those details. Johan will help with pricing and configuration. The scope of supply and delivery time are confirmed before you order.

Johan at Lumlyx
Johan
Your contact at Lumlyx
Personal advice. Made in Sweden.

Let's find the right
view for your ceiling.

Describe the room, ceiling and atmosphere you want to create. If you have already chosen a size and image, include them in your enquiry to Johan.
01
Describe your space
The ceiling and how the room is used.
02
Discuss the solution
Size, quantity, image, mounting and controls.
03
Review the quotation
Price, what is included and delivery time should be clear before you order.
Explore the Lumlyx range.

More possibilities for your space.

Different rooms have different lighting needs. Explore more products and find a solution to suit your setting.
