Products / Wall LED

Wall LED

The feeling of a window.
Where a view is missing.

Wall LED combines LED lighting and imagery in a slim-framed virtual window for wall mounting. Bring a sense of light and a view to waiting areas, healthcare settings and shared spaces.
Swedish design & manufacture
5-year warranty

Give your room a sense of a view.

A virtual window can create a visual opening in waiting areas in dental clinics and healthcare settings, or wherever people sit and meet. See Wall LED in existing spaces.
Start with your space

Create a more open feel.

A sense of natural light

An image with depth can make the panel feel like an opening in the wall. Optional glazing bars enhance the window-like appearance.

Designed for your wall

Choose a portrait or landscape format to suit your wall. Alongside standard sizes, custom sizes and two- or three-panel images are available.

A direct connection to the manufacturer

Made in Sweden with a 5-year warranty. Johan helps you choose the size, image and configuration to suit your space.
Biophilic design

A connection to nature
at eye level.

An illuminated landscape can provide a visual connection to nature, even on an internal wall. With Wall LED, the image becomes part of the room’s lighting and character. It is one way to introduce biophilic design where a natural view is missing.
A closer look

Shape your virtual window.

Start with your wall dimensions, furniture and seating positions. Then choose the size, glazing bars and image to create the atmosphere you have in mind.

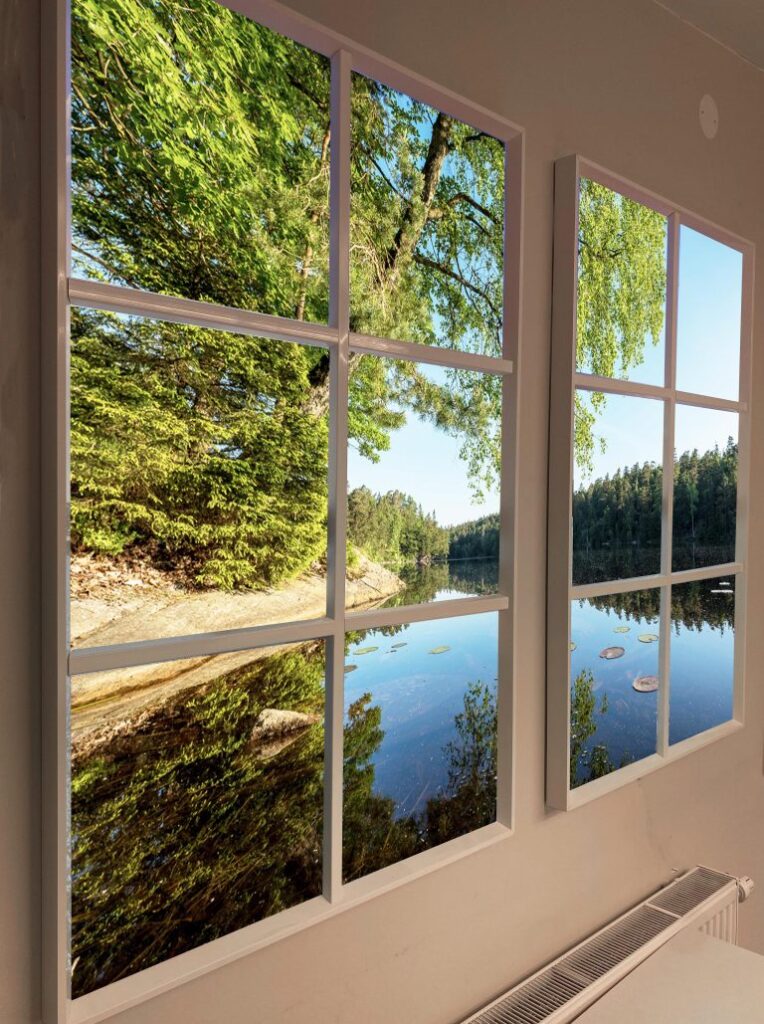

One continuous image across two panels.

Portrait, landscape or multiple panels

Standard sizes offer a choice of proportions. Two- and three-panel images are available in the catalogue. Dimensions and combinations are confirmed when ordering.
One continuous image across two panels.

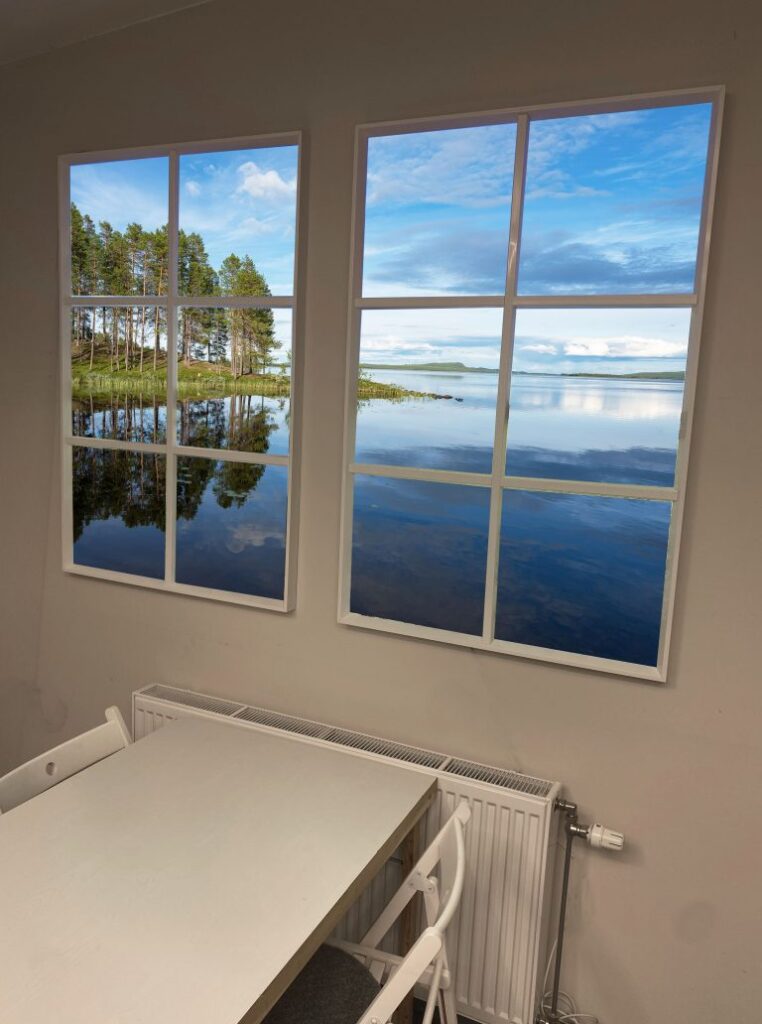

Optional glazing bars strengthen the window-like appearance. This example shows an existing installation with glazing bars.
Installed Wall LED panels with glazing bars.
Placement, electrical connections and controls need to suit the chosen wall. Include the wall dimensions and installation conditions when discussing your project.
Wall LED installed above a seating area.
Explore coastal views, forests and other images in the catalogue. Your own image can also be used, subject to a quality and format check.

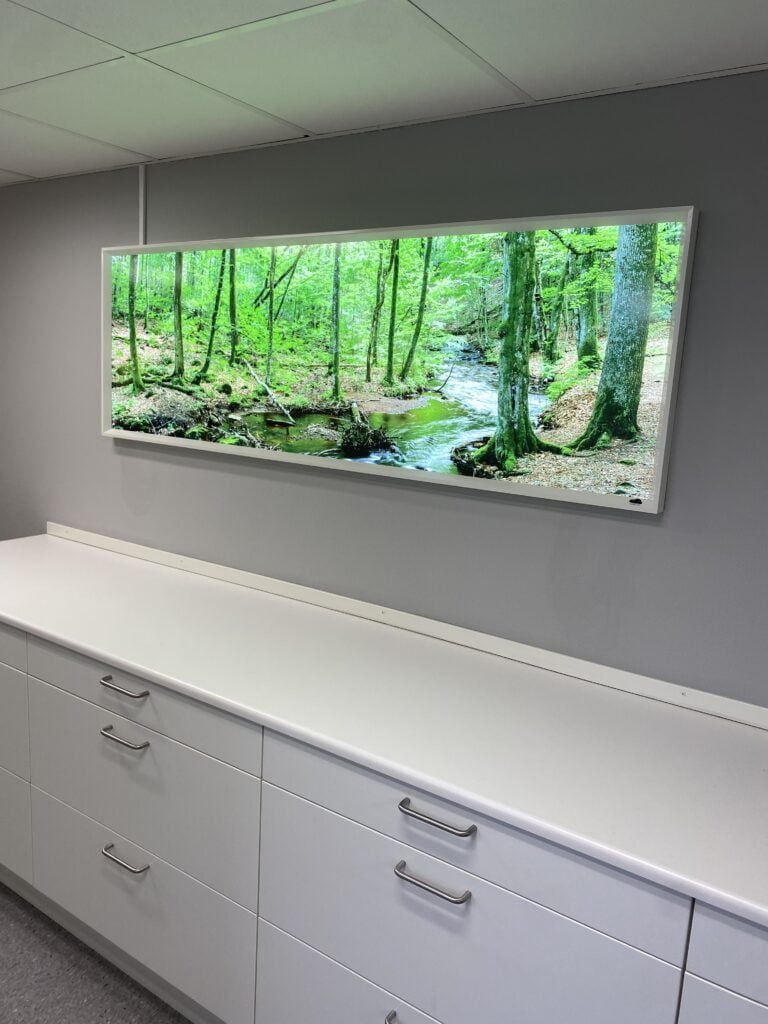

Catalogue image W_302: green woodland.
Wall LED image catalogue

Choose your view.

Explore the images and choose the look you want for your space.
Sea and rocks

W_401

80 × 120 cm
Green field and clouds

W_402

80 × 120 cm
Jetty by a coastal village

W_403

80 × 120 cm
Lumlyx Wall LED W_404

W_404

80 × 120 cm
Lumlyx Wall LED W_405

W_405

80 × 120 cm
Lumlyx Wall LED W_406

W_406

80 × 120 cm
Lumlyx Wall LED W_407

W_407

80 × 120 cm
Lumlyx Wall LED W_408

W_408

80 × 120 cm
Lumlyx Wall LED W_409

W_409

80 × 120 cm
Lumlyx Wall LED W_410

W_410

80 × 120 cm
Lumlyx Wall LED W_411

W_411

80 × 120 cm
Lumlyx Wall LED W_412

W_412

80 × 120 cm
Lumlyx Wall LED W_413

W_413

80 × 120 cm
Lumlyx Wall LED W_415

W_415

80 × 120 cm
Lumlyx Wall LED W_416

W_416

80 × 120 cm
Lumlyx Wall LED W_417

W_417

80 × 120 cm
Lumlyx Wall LED W_418

W_418

80 × 120 cm
Lumlyx Wall LED W_419

W_419

80 × 120 cm
Lumlyx Wall LED W_420

W_420

80 × 120 cm
Lumlyx Wall LED W_421

W_421

80 × 120 cm
Lumlyx Wall LED W_422

W_422

80 × 120 cm
Lumlyx Wall LED W_423

W_423

80 × 120 cm
Lumlyx Wall LED W_424

W_424

80 × 120 cm
Lumlyx Wall LED W_425

W_425

80 × 120 cm
Making your choice

Wall LED specifications.

Compare dimensions, power and configurations. Find the information you need to choose your product and plan the installation.
Wall LED dimensions and power
SizeExternal dimensions (W × L × D)WeightPowerLuminous flux
60 × 60 cm628 × 628 × 40 mm4.5 kg18 W1 200 lm
60 × 120 cm628 × 1 228 × 40 mm8.1 kg36 W2 800 lm
60 × 180 cm628 × 1 828 × 40 mm13.3 kg36 W4 200 lm
70 × 100 cm736 × 1 036 × 40 mm7.9 kg30 W2 500 lm
80 × 120 cm836 × 1 236 × 40 mm12.5 kg36 W2 800 lm
80 × 150 cm836 × 1 536 × 40 mm15.5 kg50 W3 500 lm
Custom sizeMax 1 000 × 2 000 × 40 mmTo be confirmedTo be confirmedTo be confirmed
Colour temperature
6 500 K
Lifetime
L80, 100,000 hours
Voltage
24 V DC
Warranty
5 years

Positioning on the wall

Plan the image height, wall material and cable routing alongside the product configuration. Refer to the installation instructions and discuss the conditions with Johan.

Choose controls to suit your needs

Confirm which components and functions are to be included in your order.
On/off
Meanwell
DALI / Switch DIM
Tridonic

Questions about Wall LED.

A few answers before your next step.
Yes. Wall LED is an illuminated image panel that can create a sense of light and a view where there are no windows. It complements the room’s lighting but does not provide actual daylight or ventilation.
Yes, glazing bars are available as an option. We will confirm how they work with your chosen image and size.
Consider the available wall space, furniture and viewing positions. Compare the luminaire’s external dimensions in the specifications with the space on your wall. We help you choose the size and position.
The catalogue includes two- and three-panel images. Johan helps you confirm the number of panels, dimensions and how the image is divided.
Yes, Lumlyx can use your own image. Image quality, cropping and format need to be checked before production is planned.
Send an enquiry with what you know about the room and wall. If you have chosen a size, glazing bars or an image reference, include those details. Price, mounting, electrical connections and what is included are confirmed before ordering.
Johan at Lumlyx
Johan
Your contact at Lumlyx
Personal advice. Made in Sweden.

Let's find the right
virtual window for you.

Tell us about the room, wall space and atmosphere you want to create. If you have already chosen a size and image, include them in your enquiry to Johan.
01
Describe your space
Wall dimensions, furniture and how the room is used.
02
Discuss the solution
Size, image, glazing bars, mounting and controls.
03
Review the quotation
Price, what is included and delivery time should be clear before you order.
Explore the Lumlyx range.

More possibilities for your space.

Different rooms have different lighting needs. Explore more products and find a solution to suit your setting.
