Tunable White
The changing light of day.
Even indoors.
Tunable White is a virtual skylight with adjustable colour temperature and light level to reflect the changes in daylight. For rooms with limited daylight, combined with an illuminated nature image.
From warm to cool.
Following the day.

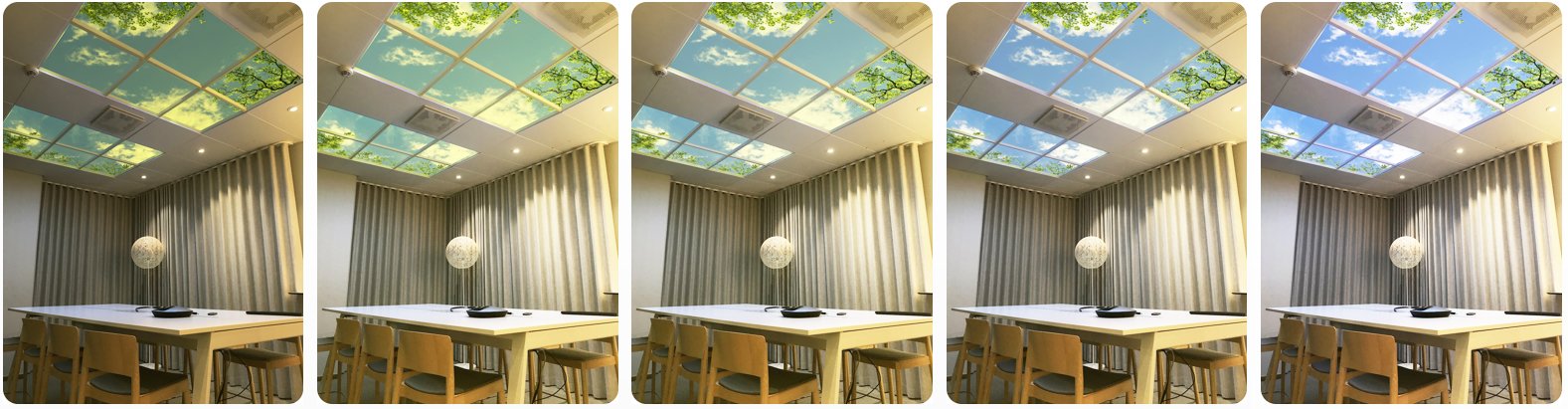

Light levels and colour temperature can be planned around the course of the day. Here you can see a healthcare installation and examples of changing light colour. In healthcare and treatment rooms, controls are tailored to the organisation’s needs.
Let your lighting reflect the changes in daylight.
Even with limited daylight, indoor light can vary throughout the day. Tunable White lets you reflect the changes in daylight by adjusting both colour temperature and light level.
Lighting can be planned to start warm and soft in the morning, become brighter and cooler around midday, then warmer again in the afternoon. The illuminated nature image strengthens the connection to the day outside.
Biophilic design
A connection to nature.
Even indoors.
Nature imagery can offer a visual connection to sky and greenery in rooms without a view. Biophilic design brings nature’s forms and character indoors; here it can be combined with adjustable white light.
Image catalogue for Tunable White
Choose an image for your room.
Choose an image from the catalogue or discuss using your own.
Showing 24 of 122 catalogue images · Entire catalogue


IM_102
60 × 120 cm
IM_104
60 × 120 cm
IM_105
60 × 120 cm
IM_106
60 × 120 cm
IM_110
60 × 120 cm
IM_113
60 × 120 cm
IM_127
60 × 120 cm
IM_132
60 × 120 cm
IM_137
60 × 120 cm
IM_140
60 × 120 cm
IM_141
60 × 120 cm
IM_155
60 × 120 cm
IM_167
60 × 120 cm
IM_168
60 × 120 cm
IM_169
60 × 120 cm
IM_170
60 × 120 cm
IM_171
60 × 120 cm
IM_193
60 × 120 cm
IM_194
60 × 120 cm
IM_1101
60 × 120 cm
IM_1103
60 × 120 cm
IM_1540
60 × 120 cm
IM_Lund_9
60 × 120 cm
Making your choice
Specifications for Tunable White.
View dimensions, lighting data and mounting options for Tunable White.
Prefer a fixed colour temperature? Compare Sky LED.
| Format | Overall dimensions (W × L × D) | Weight | Power | Luminous flux |
|---|---|---|---|---|
| 60 × 60 cm | 592 × 592 × 46 mm | 4,1 kg | 40 W | 3 000 lm |
| 60 × 120 cm | 592 × 1 192 × 46 mm | 7,8 kg | 60 W | 4 000 lm |
| 60 × 180 cm | 592 × 1 792 × 46 mm | 13,3 kg | 80 W | 5 400 lm |
| 120 × 120 cm | 1 192 × 1 192 × 46 mm | 18,5 kg | 98 W | 7 200 lm |
Adjustable colour temperature
2 700–6 500 K
Panel supply voltage
24 V DC
Driver
Tridonic 100 W DALI DT8
Lifetime
L80, 100,000 hours
Warranty
5 years
Controls
Colour temperature and light level via DALI DT8
For suspended ceilings
The modular frame can be installed in a suspended ceiling. Choose the size and position to suit the ceiling grid. Refer to the installation guide and confirm the configuration for Tunable White.
Plan the controls from the start
DALI DT8 controls both colour temperature and light level. The Welight DT8 document explains the controls. For MRI installations or other special requirements, the configuration must be assessed for the specific project.
Driver
Tridonic 100 W DALI DT8
Panel voltage
24 V DC
Johan
Your contact at Lumlyx
Your contact at Lumlyx
Personal advice. Made in Sweden.
Let's find the right
light for your room.
Describe the room, ceiling and when the lighting is used. Johan will help you choose the size, image and controls for colour temperature and light level. You will then receive a proposal with pricing for Tunable White.
Request advice and a quotation
01
Describe your space
Room dimensions, ceiling type and how the room is used.
02
Discuss the solution
Size, image, mounting and controls.
03
Review the quotation
Price, what is included and delivery time should be clear before you order.
